NeoDen YY1 Txheej txheem cej luam
Hom thiab Qauv: NeoDen YY1
Daim Ntawv Thov Cheeb Tsam: Tsim nyog rau SMT R & D cov chaw, hluav taws xob engineering labs, pib ua qauv, kev qhia hauv tsev kawm ntawv, thiabme -batch ntau lawmnyob rau hauv me me electronics factories.
Cov txiaj ntsig tseem ceeb: Kev kub ceev, siab precision, broad compatibility, thiab zoo heev tus nqi -kev ua tau zoo piv.
Highlight thiab nthuav dav
Exceptional High Precision thiab Placement ceev
- ruaj khov High Precision:Featuring kev tshaj lij ± 0.02 hli qhov kev tso kawm raug thiab rov ua dua, ua kom koj cov khoom muaj tseeb raug raug thiab ruaj khov rau ntawm PCBs kom lav cov khoom zoo.
- High Productivity:Kev tso kawm tus nqi nce mus txog 4,000 CPH nrog lub zeem muag tawm, thiab tuav 3,000 CPH txawm tias qhov pom kev sib haum xeeb tau qhib, zoo kawg nkaus ntsuas qhov nrawm thiab qhov tseeb.

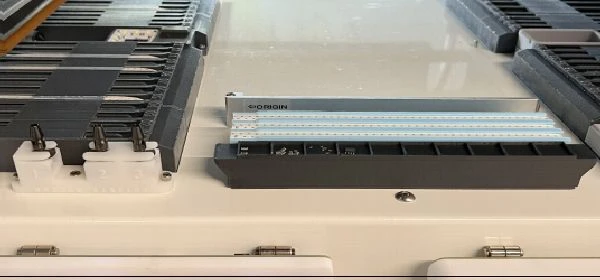

Ultra-Wide Compatibility Compatibility rau cov kev xav tau yooj yim
Kev them nyiaj yug Comprehensive:Lub NeoDen YY1 tuav cov khoom xws li los ntawm cov pob me me 0201 mus rau 18x18 mm qhov, nrog rau qhov siab tshaj plaws ntawm 12 hli. Yooj yim haum cov resistors, capacitors, thiab ICs tsis tu ncua.
Intelligent Vision Alignment System
Dual Assurance:Kev sib koom ua ke ntawm kev pom kev pom kev zoo siab thiab lub tshuab nqus tsev kawm thev naus laus zis, nws muaj tsib hom kev lees paub rau kev xaiv hloov tau raws li cov hom kev tivthaiv thiab cov kev xav tau raug, ua kom muaj txiaj ntsig zoo rau qhov chaw kawm tiav thiab raug.
Ua haujlwm zoo Automation nta
- Tsis Siv Neeg Nozzle Hloov:Nruab nrog 3-Nozzle hloov pauv tsis siv neeg txhawb kev sib xyaw siv plaub lub nozzles sib txawv. Hloov tau txais thaum muab tso rau yam tsis muaj kev cuam tshuam los ntawm phau ntawv, txhim kho kev tsim khoom txuas ntxiv.
- Visual Vacuum Detection:Qhia tawm tiag tiag- lub sijhawm nqus cov xwm txheej ntawm lub taub hau tso nrog qhov hloov pauv qhov ntsuas tus nqi. Pab cov tswv lag luam tam sim ntawd txheeb xyuas cov teeb meem tuaj tos-, kom ntseeg tau tias muaj txiaj ntsig zoo thiab qhov ua yuam kev tsawg.
Proprietary Integrated Software System
Kev ua haujlwm intuitive:Siv NeoDen tus kheej tsim kev sib koom ua ke software tswj qhov system. Txhawb nqa import CSV cov ntaub ntawv sib koom ua ke ntawm SD daim npav rau kev ua haujlwm sai, yooj yim. Txo txoj kev kawm nkhaus, ua kom muaj kev xa tawm sai.
NeoDen YY1 SMT Tshuab Parameter
| Basic Specifications | Qauv: NeoDen YY1 |
| Tshuab Structure: Ib leeg Gantry nrog2 Lub taub hau | |
| Performance Parameters | Placement Rate (Lub Zeem Muag Tawm):4,000 CPH |
| Placement Rate (Vision On):3,000 CPH | |
| Alignment Method: Lub Zeem Muag & Nqus Tsev | |
| Qhov tseeb qhov chaw:± 0.02 hli | |
| X-Y Repeatability:± 0.02 hli | |
| Component Range | Min Component Loj:0201 |
| Max Component Loj:18 * 18 hli | |
| Max Component Qhov siab:12 mm | |
|
Lub kaum sab xis:± 180 degree |
|
| Pub System | Daim kab xev Feeders:52 (tag nrho 8mm) |
| Flexible Feeders:28 | |
| Bulk Feeder:19 | |
| Stick Feeder:4 | |
| Nozzle Hloov Peev Xwm:3 Nozzles | |
| PCB Compatible Size | Qhov Loj Tshaj Plaws (Dual-Txheej Daim kab xev):249 * 350 hli |
| Qhov Loj Kawg Nkaus (Ib Leeg-Txheej Daim Kab Xev):315 * 350 hli |
NeoDen YY1 Video
NeoDen YY1 Cov Ntaub Ntawv Kev Lag Luam
MOQ: 1 pc
Ntim Cov Lus Qhia: Ntoo crate ntim
Lub sij hawm xa tuaj: Hauv Tshuag
Hais txog NeoDen
Hoobkas
Cov ntaub ntawv ceevhais txog NeoDen
- Tsim los ntawm 2010, 200+ cov neeg ua haujlwm, 27, 000+ Sq.m. Hoobkas.
- NeoDen muab ib qho - nres SMT kab.
- Ua tau zoo 10000+ cov neeg siv khoom thoob plaws ntiaj teb.
- 40+ Cov neeg sawv cev thoob ntiaj teb muaj nyob hauv Asia, Europe, America, Oceania thiab Africa.
- R&D Center: 3 R&D departments nrog 25+ tus kws tshaj lij R&D engineers.
- Sau npe nrog CE thiab tau txais 70+ patents.
- 30+ kev tswj xyuas zoo thiab kev txhawb nqa engineers, 15+ cov neeg laus muag khoom thoob ntiaj teb, cov neeg siv khoom tau teb raws sijhawm hauv 8 teev, cov kev daws teeb meem tshaj lij muab hauv 24 teev.
Exhibition
Daim ntawv pov thawj
FAQ
Q1: Dab tsi yog suav nrog hauv pob khoom qub?
Feeders
- 36 * 8mm Daim kab xev Feeders
- 6 * 12mm Daim kab xev Feeders
- 3 * 16mm Daim kab xev Feeders
- 1 * Nplaum Feeder
- 2 * Sawb Feeders
- 3 * Cov khoom noj khoom haus ntau
Nozzles
- CN 040 x 2 pcs
- CN 065 x 2 pcs
- CN 100 x 1 pc
- CN 140 x 1 pc
- CN 220 x 1 pc
- CN 400 x 1 pc
Khoom siv
- Nozzle chaw nres tsheb
- IC tais
- SD daim npav
- Demo PCB
Q: Dab tsi yog cov yam ntxwv tseem ceeb ntawm NeoDen YY1 me me tuaj tos thiab tso tshuab?
- Nws pib nozzle changer
- Dual vision system rau siab tso qhov tseeb
- Visual programming
- Touchscreen interface
- Qhov chaw tso kawm: 3000 CPH (tsis pom kev) / 4000 CPH (tsis pom kev)
- Qhov tseeb: ± 0.02mm
- Txhawb PCB qhov ntau thiab tsawg mus txog 350x249 mm (dual-side feeders)
Q: Dab tsi yog qhov ntev thiab qhov hnyav ntawm NeoDen YY1?
- Qhov Loj: 643 (L) x 554 (W) x 601 (H) mm
- Net nyhav: 35.5 kg
- Qhov hnyav tag nrho: 47 kg
Q: Puas muaj kev xaiv customization muaj?
A: Yog lawm, cov khoom siv pub tuaj yeem suav nrog 24mm daim kab xev feeders (yeem).
Q: Lub sijhawm lav rau NeoDen YY1 yog dab tsi?
A: Txhua lub tshuab tuaj yeem tuaj nrog 2 xyoo lav.
Lub sijhawm no, yog tias muaj teeb meem tshwm sim, peb muab kev daws teeb meem hauv 1-2 teev ntawm email lossis kev txhawb nqa online.
Cov khoom seem yuav raug xa dawb los ntawm DHL.
Peb pab pawg muag khoom tom qab - muaj nyob rau ob hnub ua haujlwm thiab hnub so.
Cov neeg siv tiag tiag Review: NeoDen YY1 Desktop Xaiv thiab Chaw Tshuab rau Prototyping
"Rau SMT Prototyping & Me Batch PCBA, NeoDen YY1 yog qhov kev xaiv zoo"
Raws li lub sijhawm ntev -NeoDen4 tus tswv, tus kws ua haujlwm German no ntxiv rauNeoDen YY1 desktop xaiv thiab tso tshuabraws li ib tug tshwj xeeb backup chav nyob rau hauv - tsev prototyping thiab me me -batch sib dhos ntawm embedded processor systems tuav 0402 Cheebtsam.
"Rau lub tshuab nyiaj qis - nws ua nws txoj haujlwm zoo heev ... Rau kev tsim qauv YY1 yog qhov kev xaiv zoo thiab kuv paub tseeb tias peb yuav muaj kev lom zem nrog nws." -drgerber(EEVblog Community Member)
Tiag -Kev vam meej hauv ntiaj teb: NeoDen YY1 Benchtop Kab Rau Hauv -Lub Tsev R & D Prototyping
"Me me, Handy, Thiab Kev nqis peev zoo rau Prototyping & Kev tsim me me"
Txhawm rau kom nrawm dua hauv -lub sijhawm R&D hloov pauv hauv tsev, pab pawg neeg ua haujlwm no tau siv lub rooj sib tw ua haujlwm SMT tus qauv kab uas muaj covNeoDen YY1 desktop xaiv thiab tso tshuabnrog rauFP2636 stencil tshuab luam ntawvthiabIN6 reflow qhov cub.
"Peb tab tom siv lub tshuab los sib sau ua ke cov qauv PCBs peb tsim hauv peb cov chaw sim. Peb zoo siab nrog nws, nws yog qhov me me thiab siv tau ... Kuv paub tseeb tias lub tshuab no yog kev nqis peev zoo rau kev tsim qauv thiab kev tsim khoom me me." -Ximoos(Tshwj xeeb buyer Feedback)
