Koj tus kws tshaj lij Solder Paste Tshuaj Xyuas Tshuab Chaw muag khoom
NeoDen Tech yog tus thawj coj thoob ntiaj teb hauv kev tsim cov khoom siv SMT. Kev khiav hauj lwm los ntawm peb 27, 000+ m² NeoDen Park, peb tau hloov zuj zus dhau lub tshuab standalone los ua tus neeg muab kev pabcuam tag nrho - nplai turnkey los ua ke kab.Our cov khoom lag luam dav dav npog txhua theem tseem ceeb ntawm cov txheej txheem PCBA ntau lawm. Cov khoom lag luam xa tawm mus rau 130+ lub teb chaws, pab cov ntawv thov los ntawm cov chaw soj ntsuam tshawb fawb rau SME cov kab ntau lawm..
Vim Li Cas Xaiv Peb
Khoom siv Advanced
NeoDen muaj ntau yam khoom siv SMT npog tag nrho cov txheej txheem PCB los ua ke, suav nrog siab - nrawm nrawm- thiab - qhov chaw tshuab, reflow ncu, tshuab luam ntawv stencil, nrog rau kev tshuaj xyuas thiab rov ua haujlwm.
Pab neeg tshaj lij
Rov qab los ntawm peb qhov tshwj xeeb R & D department thiab ib pab neeg ntawm 25 engineers, NeoDen tuav txoj cai muaj tswv yim ywj pheej rau nws cov thev naus laus zis tseem ceeb. Peb tsis tu ncua innovate los xyuas kom meej qhov precision thiab ntau lawm stability ntawm peb cov cuab yeej, txhawb buyers nrog txhim khu kev qha, ntev -lub sij hawm automated manufacturing muaj peev xwm.
Kev Tswj Xyuas Zoo
NeoDen nruj me ntsis raws li ISO cov qauv, ua rau txhua yam khoom siv-los ntawm ib tus neeg cov khoom mus rau lub tshuab ua kom tiav-rau kev sim ua tiav. Ua kom cov kab ntau lawm ua haujlwm tau zoo thiab tswj cov khoom zoo ib yam.
24H Online Service
Peb muab cov kev pabcuam xws li kev sim ua qauv, kev cob qhia online, kev daws teeb meem hauv thaj chaw deb, thiab ntawm - kev txhawb nqa ntawm qhov chaw. Cov neeg yuav khoom tau lees paub cov lus teb hauv 8 teev thiab kev daws teeb meem hauv 24 teev, yog li txo qis kev pheej hmoo ntau lawm.
Lub Tshuab Tshuaj Ntsuam Xyuas Tshuaj Txhuam Txhuam (SPI) yog lub tshuab kho qhov muag tsis siv neeg hauv SMT kev tsim khoom uas tshuaj xyuas cov khoom siv tshuaj pleev xim rau ntawm PCBs tam sim ntawd tom qab luam ntawv thiab ua ntej cov khoom tso. Nws siv 3D laser los yog teeb pom kev zoo los ntsuas qhov ntim, qhov siab, thaj tsam, thiab kev sau npe txhawm rau txhawm rau txheeb xyuas qhov tsis xws luag xws li cov khoom siv uas ploj lawm, kev sib txuas, lossis kev sib tsoo, tiv thaiv 75% ntawm kev sib dhos yuam kev.
Khoom Specification
Peb muab cov khoom specifications hauv qab no:
|
Kuaj System |
Lub koob yees duab: 5 mega-pixel |
|
Teeb pom kev zoo: RGB puag ncig |
|
|
FOV: 42 × 34mm (17 μm) |
|
|
Lub sijhawm ua haujlwm ib lub thav duab: <0.7 vib nas this |
|
|
Max ntsuas qhov siab: 450 μm |
|
|
Solder Scope: 0.2 × 0.2 hli - 12 × 12 hli |
|
|
Kev ntsuas kev ua haujlwm |
Kev ntsuas qhov siab precision: 1 μm |
|
Volume/Area/Height Repeatability: <1 μm @3sigma |
|
|
Repeatability & Reproducibility (R&R): <10% |
|
|
Software nta |
Operating System: Windows 10 64-bit |
|
Kev khiav hauj lwm Interface: Graphical programming, Suav/English switching |
|
|
Programming Support: Txhawb Gerber, CAD input, offline thiab phau ntawv programming |
|
|
Kev them nyiaj yug SPC: Offline SPC / Tiag - qhia sijhawm (Txhua Lub Sijhawm Qhia) |
|
|
Cov ntaub ntawv Export: Excel, Duab (jpg, bmp) |
|
|

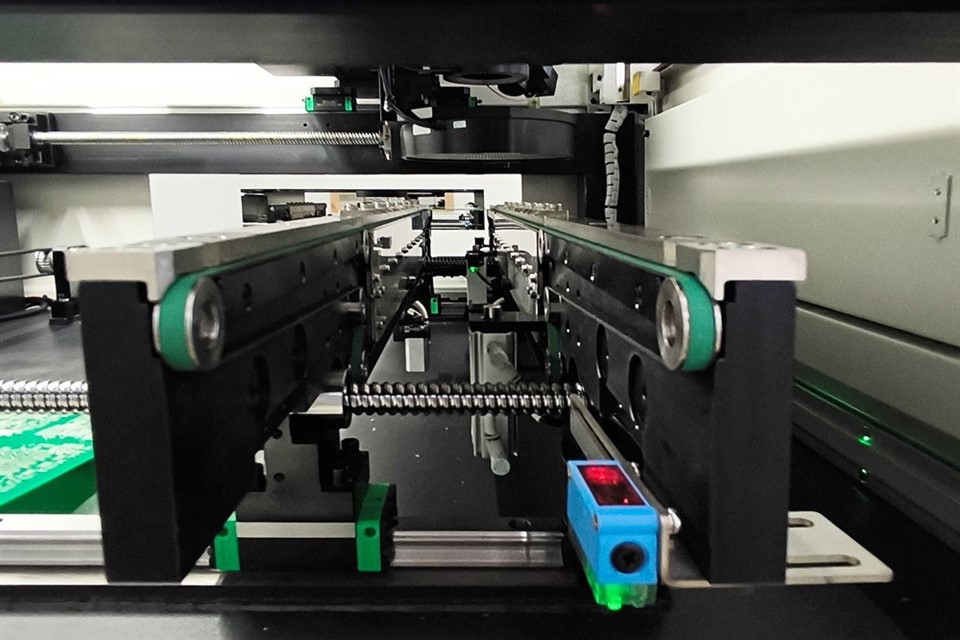

Mechanical & Hloov |
PCB Hloov Qhov siab: 900 ± 30 hli |
|
Substrate Kho hom: Ntug Xauv Phaj |
|
|
Min PCB Loj: 50 × 50 mm |
|
|
Max PCB Loj: 500 × 460 mm |
|
|
Hloov ceev: 1500mm / s (Max) |
|
|
Platform System |
Cov Khoom Siv Tsav Tsheb: AC servo lub cev muaj zog |
|
X/Y Platform Teem Qhov Tseeb: 5μm |
|
|
Tsav ceev: 600mm / s |
3D solder paste tshuaj xyuas raws li dawb-lightsine stripe PMP thev naus laus zis;
Solder paste qhov siab tshuaj xyuas qhov tseeb ncav cuag 1 um;
Nws pib- rov qab pad 3D cov ntaub ntawv ntawm PCB nto, suav cov ntim, thaj tsam, qhov siab thiab sib txawv ntawm txhua qhov solder
Multi-kev taw qhia, ntau-angle 3D PMP tshuaj xyuas;
Vivid thiab yooj yim rau siv nraaj sib cuam tshuam interface, muaj nuj nqi thiab yooj yim rau lis;
Ntxiv rau qhov programming nrog Gerber cov ntaub ntawv, duab -oriented edit hom kuj tuaj yeem paub tawm -lineprogramming thiab debugging;
Multi- kov muaj nuj nqi tuaj yeem paub txog 3D duab tig thiab 2D duab resizing, yooj yim rau kev kuaj xyuas thiab paub meej tias cov tshuaj txhuam hniav;
Comprehensives SPC muaj nuj nqi suav nrog ntau yam ntawm daim duab tsim thiab tso zis;
Duab nrawm xam raws li ntau-GPU;
Integrated cam khwb cia hlau ncej qauv, highrigidity tuaj yeem zam kev co sab nraud
Cheebtsam
Lub koob yees duab Systems:Cov cuab yeej SPI tau nruab nrog lub koob yees duab siab heev uas ntes tau siab - cov duab daws teeb meem ntawm PCB nto tom qab siv daim ntawv thov. Cov koob yees duab no ua lub luag haujlwm tseem ceeb hauv kev tsim cov duab ntxaws ntxaws ntawm cov ntaub nplaum nplaum nplaum, ua kom muaj kev txheeb xyuas meej thiab sib piv nrog cov qauv tsim.
Illumination Sources:Lub teeb pom kev zoo yog qhov tseem ceeb rau kev ua kom pom tseeb. Qhov chaw teeb pom kev zoo hauv SPI cov cuab yeej ua kom ntseeg tau tias PCB nto tau teeb txaus, txhim kho qhov pom ntawm cov khoom siv tshuaj txhuam hniav. Ntau yam teeb pom kev zoo tso cai rau kev tshuaj ntsuam xyuas, kom ntseeg tau tias lub kaw lus tuaj yeem hloov mus rau qhov chaw tsim khoom sib txawv.
3D ntsuas Technology:Ntau lub tshuab SPI niaj hnub siv 3D ntsuas tshuab los ntsuas qhov siab thiab ntim ntawm cov nplaum nplaum nplaum. Cov thev naus laus zis no ua rau muaj kev ntsuam xyuas ntau dua, mus dhau 2D tshuaj xyuas. Los ntawm kev ntsuas qhov siab ntawm qhov muab tshuaj txhuam, SPI cov tshuab tuaj yeem txheeb xyuas qhov sib txawv thiab qhov tsis sib xws uas yuav raug saib xyuas hauv kev tshuaj xyuas 2D nkaus xwb.
Automated Inspection Software:Lub plawv ntawm SPI system nyob hauv nws cov software algorithms. Automated soj ntsuam software txheej txheem cov duab ntes, muab piv rau ua ntej - cov qauv thiab specifications. Cov software no yog tsim los txheeb xyuas qhov sib txawv hauv cov khoom siv tshuaj yaj yeeb, tso cai rau kev tshawb pom sai thiab raug ntawm qhov tsis xws luag lossis misalignments.
Daim ntawv thov
Kev tshuaj xyuas cov tshuaj nplaum nplaum (SPI) yog cov txheej txheem tseem ceeb hauv kev lag luam hluav taws xob tsim hluav taws xob, kom ntseeg tau qhov zoo thiab kev ntseeg siab ntawm cov ntawv luam tawm Circuit Board (PCBs) ua ntej lawv mus rau theem soldering. Nrog rau qhov nyuaj ntawm cov khoom siv hluav taws xob ntau zuj zus, cov tuam txhab tso siab rau SPI cov cav tov kom tswj tau qhov tseeb thiab sib xws hauv daim ntawv thov ntawm cov tshuaj txhuam hniav.
- Cov khoom siv hluav taws xob
- Automotive electronics
- Cov cuab yeej kho mob
- Kev tswj hwm kev lag luam
Tag nrho peb cov tshuab yuav raug kuaj xyuas tag nrho los ntawm peb lub tuam tsev tswj xyuas zoo ua ntej xa khoom xa tuaj. Peb lav tag nrho peb cov cav tov muaj ib qho - xyoo warranty (ceev-cov khoom tsis suav nrog).
Cov ntsiab lus ntawm kev cob qhia:Cov qauv kev ua haujlwm, qhov system, thiab cov qauv, kev nyab xeeb thiab kev saib xyuas, software ua cov txheej txheem, thiab lwm yam.
Ntau cov lus tawm tswv yim los ntawm peb cov neeg siv khoom tau ua pov thawj tias peb cov cav tov ruaj khov hauv kev ua tau zoo nrog tsawg malfunction. Txawm li cas los xij, peb xav daws nws raws li hauv qab no thaum malfunction tshwm sim:
- Peb lav tias peb yuav muab cov lus teb meej rau koj hauv 24 teev.
- Cov neeg ua haujlwm pabcuam cov neeg siv khoom yuav pab koj txheeb xyuas qhov ua haujlwm tsis zoo los nrhiav qhov ua rau.
- Yog tias qhov ua haujlwm tsis zoo yog tshwm sim los ntawm kev ua haujlwm tsis raug ntawm software thiab lwm yam tsis raug, peb yuav pab daws qhov teeb meem hauv online.
- Peb yuav muab ntau yam kev txhawb nqa online, xws li cov lus qhia ntxaws ntxaws thiab kev teeb tsa ntawm email, video, thiab xov tooj.
Ntim & Xa
| Pob: | Txheem export pob lossis Custom |
| Kev xa khoom: | Los ntawm huab cua nthuav qhia, los ntawm hiav txwv |
FAQ
Raws li ib qho ntawm cov khoom siv tshuaj ntsuam xyuas tshuab manufacturers thiab cov muag khoom nyob rau hauv Suav teb, peb muab ntau yam khoom nrog superior zoo. Thov koj xav tias dawb mus yuav qib siab - qib solder paste tshuaj xyuas tshuab ntawm tus nqi sib tw los ntawm peb lub hoobkas. Ua tsaug rau koj txaus siab rau peb cov khoom.
