Solder Paste tshuab luam ntawv
Lub tshuab luam ntawv Solder Paste yog dab tsi?
Lub tshuab luam ntawv muab tshuaj txhuam yog ib lub tshuab siv hauv kev tsim hluav taws xob los siv cov khoom siv zoo thiab zoo sib xws rau hauv lub rooj tsav xwm Circuit Court los ntawm stencil. Nws yog ib kauj ruam tseem ceeb hauv Surface Mount Technology (SMT) cov txheej txheem sib dhos, kom ntseeg tau tias cov khoom yuav raug soldered zoo nyob rau hauv qhov chaw. Cov tshuab luam ntawv niaj hnub no muaj ntau yam los ntawm phau ntawv phau ntawv cov qauv mus rau lub tshuab ua haujlwm siab nrog cov yam ntxwv zoo li kev sib dhos tsis siv neeg, tswj siab, thiab kev tshuaj xyuas zoo.
Qhov zoo thiab nta ntawm Solder Paste Printers
NeoDen Solder Paste Tshuab Luam Ntawv: Precision Solutions los ntawm Prototyping rau Volume Production
1. Exceptional nqi efficiency
Muab cov nqi sib tw tshaj plaws hauv kev ua lag luam, txo qis cov nqi pib-zoo rau kev pib ua lag luam thiab R & D labs.
ROI nrawm: Ua tiav cov ntawv luam tawm ntawm cov peev nyiaj tsawg, ua kom cov khoom lag luam nrawm dua.
2. Precision Micro-Txoj kev hloov kho
Nta X/Y/Z-axis micro-khoov kho kom haum rau qhov tseeb ntawm PCBs thiab stencils, kom ntseeg tau siab rov ua dua hauv kev luam ntawv.
Kev Ua Haujlwm Zoo: Txawm tias yog ib qho khoom siv phau ntawv, nws ua tiav siab - kev sib raug zoo, txo qis kev pheej hmoo ntawm kev tsis ncaj ncees.
3. Optimized Printing Zoo
Qhov zoo tshaj plaws squeegee system ua kom lub siab tsis sib xws ntawm kev luam ntawv, xa cov khoom ruaj khov thiab zoo sib xws ntawm cov khoom sib xyaw ua ke.
Txo qhov tsis xws luag: tshem tawm tib neeg-vim qhov sib txawv, lav qhov sib xws ntawm cov tshuaj nplaum tuab thiab qhov chaw.
4. Flexible Clamping System
Txais yuav ib lub tshuab clamping zoo uas yoog tau sai rau qhov sib txawv PCB qhov ntau thiab tsawg, txhim kho kab hloov kev ua haujlwm.
Ntau Lawm Flexibility: Siv zog ua haujlwm ntau- ntau yam, me me -batch xaj xaj.
5. Siab -Qhov Kev Pom Zoo Ua Ntej Ua Ntej
Nruab nrog siab - daws teeb meem CCD tsis pom kev, ua kom tsis siv neeg tag nrho, kev sib raug zoo ntawm PCBs nrog stencils (X / Y / θ axes), txhawb kev nplua -pitch tivthaiv luam ntawv.
Ultimate Yield: Tshem tawm tib neeg kev sib raug zoo uas tsis raug, xyuas kom meej qhov chaw muab tshuaj txhuam, tshwj xeeb tshaj yog tsim rau cov khoom siv me me.
6. Kaw-Loop Intelligent Control
Siv siab -kev ua tau zoo servo lub cev muaj zog kom ua tiav qhov raug kaw- voj tswj ntawm squeegee stroke, ceev, thiab siab, ua kom cov txheej txheem luam ntawv ruaj khov thiab rov ua dua.
Txheej Txheem Stability: Cov ntawv luam ntawv tswj tau zoo heev txhim kho cov khoom tsim tawm thiab sib xws.
7. Kev ua haujlwm ruaj khov
Intuitive tus neeg siv interface thiab lub zog ua haujlwm muaj peev xwm ua kom yooj yim, ua haujlwm tau zoo nrog kev cia khoom thiab rov qab ceev.
Ua haujlwm tau zoo thiab tus neeg siv- Tus phooj ywg: Txo cov sijhawm ua haujlwm ntawm tus neeg siv khoom thaum ua kom muaj kev teeb tsa sai thiab hloov ua haujlwm ntau lawm.
Ntiaj teb no Technical Support & Warranty:Peb cov cuab yeej ua haujlwm rau ntau tshaj 130 lub teb chaws / cheeb tsam thoob ntiaj teb, txhawb nqa los ntawm kev tiv thaiv kev ruaj ntseg thiab kev txhawb nqa lub neej.
Rapid Response Mechanism:Peb pab pawg kws tshaj lij engineering lav cov neeg siv khoom teb hauv 8 teev thiab xa cov kws tshaj lij kev daws teeb meem hauv 24 teev, kom ntseeg tau tias tsis muaj kev cuam tshuam ntau lawm.
Daim ntawv thov ntawm Solder Paste Printers
| Tshuab Hom | Khoom qauv | Optimal Application Areas | Tsim nyog Cov Neeg Siv Khoom / Ntau Lawm |

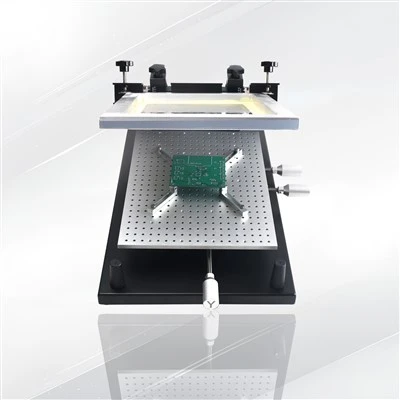

| Phau ntawv solder printers | NeoDen FP2636 nrog ncej, | Desktop SMT, Prototyping, Tus nqi qis, Cov khoom me me, Kev Kawm. | Cov neeg nyiam ua khoom siv hluav taws xob ib leeg, R&D labs, cov tsev kawm qib siab / tsev kawm ua haujlwm, tus nqi - cov neeg siv khoom xav tau tsuas yog cov qauv me me xwb. |

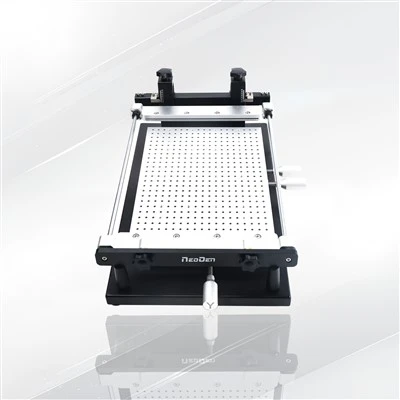

| NeoDen FP2636 tsis muaj teeb meem | |||

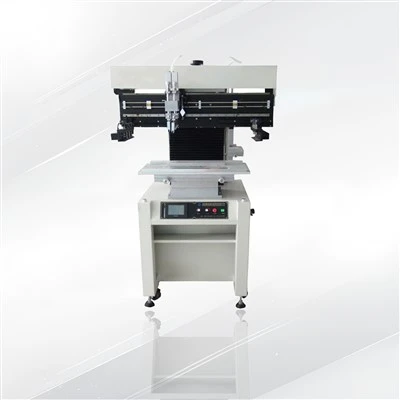

| Semi-Auto solder Printers | NeoDen YS350, NeoDen YS600, NeoDen YS1200 | Tus nqi siab-Kev ua tau zoo SMT, Nruab nrab ntim ntau lawm, txhim kho kev luam ntawv zoo ib yam, Lub Hoobkas Me Me Hluav Taws Xob. | Cov khoom me me thiab nruab nrab-cov tuam txhab hluav taws xob loj (SMEs) nrhiav kev hloov kho los ntawm kev siv phau ntawv los txhim kho kev luam ntawv zoo thiab ua haujlwm tau zoo, tseem muaj kev txwv los ntawm kev txwv nyiaj txiag. |

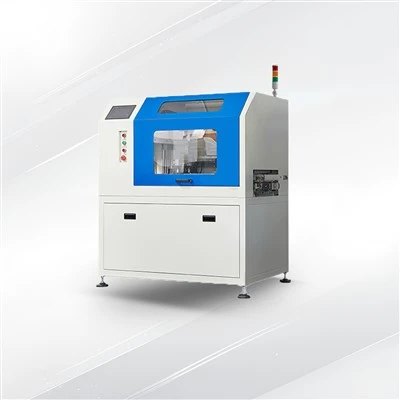

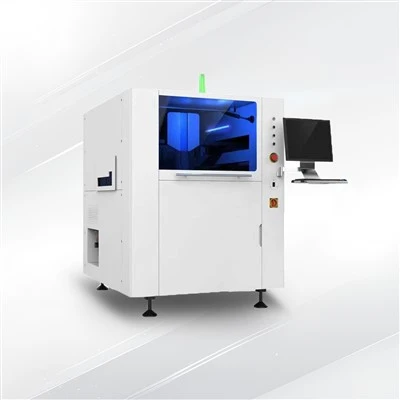

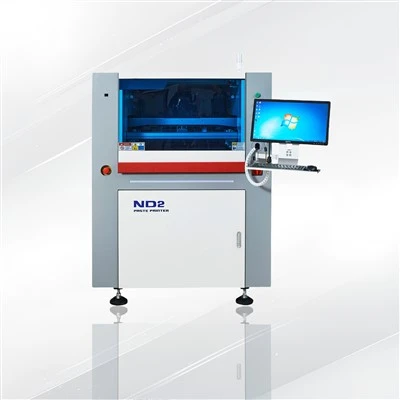

| Fully Automatic Vision Printers | NeoDen ND1, NeoDen ND2, NeoDen Y600, NeoDen Y1200 | High Precision Printing, High Volume Production, Fine Pitch Cheebtsam (muaj peev xwm luam tawm 0.3mm suab ntaub), Tag Nrho Tsis Siv Neeg SMT Kab. | Cov chaw muab kev pabcuam EMS loj, siab -cov khoom lag luam kev ntseeg siab, thiab cov neeg siv khoom tsim cov nyom lossis nplua -pitch PCBs (piv txwv li, BGA/QFP). |
FAQ
Q: Dab tsi ntawm cov tshuab luam ntawv luam tawm yog NeoDen FP2636?
A: NeoDen FP2636 yog phau ntawv siv lub tshuab luam ntawv, tsim rau me me - teev ntau lawm, kev tsim qauv, thiab R&D ib puag ncig.
Q: Hom stencil twg yog NeoDen FP2636 SMT stencil tshuab luam ntawv txhawb nqa?
A: Nws txhawb frameless stencil.
Q: Peb puas tuaj yeem ua cov stencils hauv zos?
A: Yog, lub tshuab luam ntawv stencil no txhawb cov neeg siv khoom DIY nws qhov ntev thiab yooj yim heev los ua nws hauv zos.
Q: Peb puas tuaj yeem hloov nws mus rau hom framed tom qab?
A: Yog, nws tuaj yeem ua haujlwm tau, tab sis yuav tsum muaj pob khoom hloov kho tshiab.
Q: Dab tsi yog qhov Max PCB loj txaus siab?
A: Lub NeoDen FP2636 txhawb PCBs txog li 260 x 360 hli.
Raws li ib qho ntawm cov ua tshuab luam ntawv tshuab luam ntawv thiab cov muag khoom nyob rau hauv Suav teb, peb muab ntau yam khoom zoo tshaj plaws. Thov koj xav tias dawb mus yuav siab - qib solder paste tshuab luam ntawv ntawm tus nqi sib tw los ntawm peb lub hoobkas. Ua tsaug rau koj txaus siab rau peb cov khoom.
