Highlight thiab nthuav dav
1. Dual vision system (nce- saib thiab nqis- saib lub koob yees duab), nruab nrog kev lag luam ceev ceev CCD lub koob yees duab tuaj yeem pab txheeb xyuas thiab ntsuas plaub qhov kev xaiv ib zaug, txhim kho qhov tseeb ntawm qhov chaw ntawm 0201 mus rau BGA.
4. Tshiab tsim mounting lub taub hau uas txais kev ncua, tag nrho symmetrical thiab high℃ntawm coupling txoj kev, los xyuas kom meej tias nws muaj peev xwm mount Cheebtsam nrog ntau dua qhov chaw, maj mam thiab ntau yog.
5. Txhawb kev hloov kho tej thaj chaw deb, NeoDen yuav muab lub neej - kev pabcuam ntev thiab kev hloov kho qhov system.
Electronic Feeders
Ntawm - kab Dual Rails
Plaub High Precision Nozzles

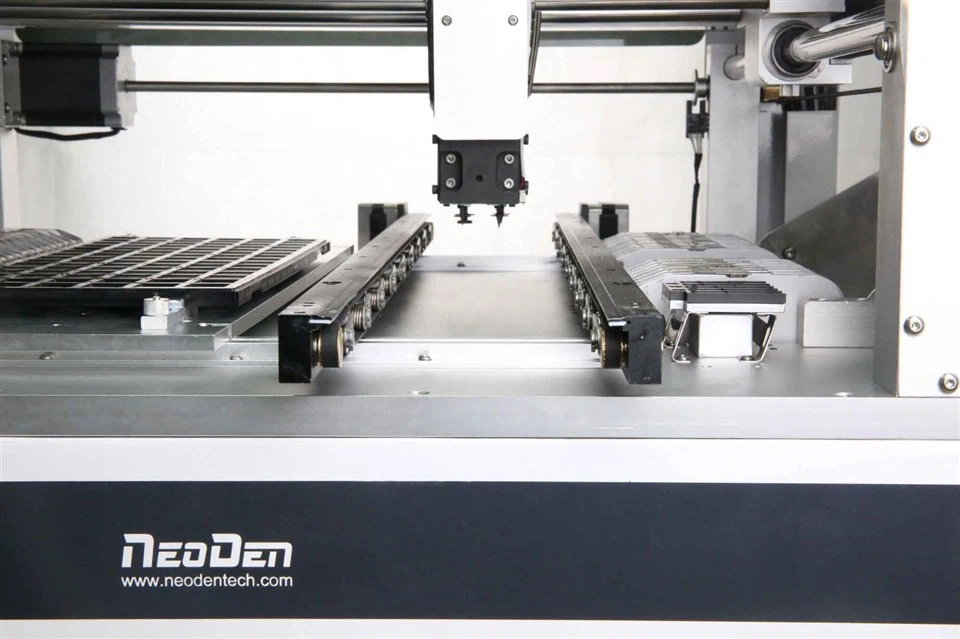

NeoDen4 Nto mount tshuab Parameter
| Basic Specifications | Qauv:NeoDen 4 |
| Tshuab Structure: Ib leeg Gantry nrog4 Lub taub hau | |
| Performance Parameters | Placement Rate (Lub Zeem Muag Tawm):5,000 CPH |
| Placement Rate (Vision On):4,000 CPH | |
| Alignment Method: Theem Vision | |
| Qhov tseeb qhov chaw:± 0.02 hli | |
| X-Y Repeatability:± 0.02 hli | |
| Kev sib hloov:± 180 degree | |
| Component Range | Min Component Loj:0201 |
| Max Component Loj:32 * 32 hli | |
| Maximum Component Qhov siab:5 hli | |
| Pub System | Daim kab xev Feeders:48 pcs (tag nrho 8 mm) |
| Vibration Feeder:5 pcs ib | |
| Tais Feeder:5 pcs ib | |
| PCB Compatible Size | Max Loj:280 x 1500 mm |
| Board Loj nrog 1 waffle tais:140 x 1500 mm | |
| Auto Rails:1.5 m siab | |
| Hardware thiab Power Supply | Main Tswj: GUI (Graphical User Interface) |
| Kev Siv Hluav Taws Xob:110V/220V | |
| Lub zog:180W | |
| Tshuab Loj:870(L) x 680(W) x 480(H) mm | |
| PCB Muaj Qhov Loj | Max Loj:310 x 1500 mm |
| Board Loj nrog lub tais Enabled:140 x 1500 mm | |
| Software & Services | System Updates: Txhawb kev hloov kho tej thaj chaw deb |
| Kev them nyiaj yug Technical: Kev txhawb nqa lub neej thiab kev hloov kho tshiab |
NeoDen4 SMT Tshuab Video
Peb Qhov Kev Pabcuam
1. Kev paub zoo ntawm kev ua lag luam sib txawv tuaj yeem ua tau raws li qhov tshwj xeeb.
2. Cov chaw tsim khoom tiag nrog peb lub Hoobkas nyob hauv Huzhou, Suav.
3. Cov kws tshaj lij kev ua haujlwm muaj zog kom ntseeg tau tias tsim cov khoom zoo tshaj plaws.
4. Kev tswj tus nqi tshwj xeeb xyuas kom muab tus nqi zoo tshaj plaws.
5. Kev paub nplua nuj ntawm SMT cheeb tsam.
6. Muab cov lus qhia khoom, YouTube video tutorials, muaj kev paub tom qab- cov kws tshaj lij muag khoom, 24 teev kev pabcuam online.
Nrog peb tus kheej lub chaw tsim khoom thiab ntau tshaj 10 xyoo ntawm kev paub hauv SMT kev lag luam, peb tuaj yeem muab cov neeg siv khoom nrog tus nqi tshaj - cov khoom siv tau zoo.
FAQ
Q1. Yuav ua li cas txog lub warranty?
A: Peb muaj 2 xyoo lav rau NeoDen SMT cov cav tov, lub neej tom qab - kev them nyiaj yug.
Q2. Kuv tuaj yeem yuav tshuab li cas ntawm koj?
A: (1) Tham nrog peb ntawm kab lossis los ntawm e-mail.
(2) Sib tham thiab paub meej tus nqi kawg, shipping, txoj kev them nqi thiab lwm yam nqe lus.
(3) Xa koj daim ntawv them nqi proforma thiab lees paub koj qhov kev txiav txim.
(4) Ua cov nyiaj them poob haujlwm raws li tus qauv muab tso rau hauv daim ntawv them nqi proforma.
(5) Peb npaj koj daim ntawv xaj raws li daim ntawv them nqi proforma tom qab lees paub koj cov nyiaj them tag nrho. Thiab 100% zoo kuaj ua ntej shipping.
(6) Xa koj daim ntawv xaj los ntawm kev nthuav qhia lossis los ntawm huab cua lossis los ntawm hiav txwv.
Q3. Nov yog thawj zaug kuv siv lub tshuab zoo li no, nws puas yooj yim rau kev khiav lag luam?
A: Yog. Muaj lus Askiv phau ntawv thiab phau ntawv qhia video uas qhia koj siv tshuab.
Yog tias muaj kev tsis ntseeg nyob rau hauv cov txheej txheem ntawm kev khiav hauj lwm lub tshuab, thov koj xav tiv tauj peb.
Peb kuj muab kev pabcuam txawv teb chaws ntawm -qhov chaw pabcuam.
Q4. Koj puas yog tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog cov chaw tsim khoom tshwj xeeb hauv SMT Tshuab, Xaiv thiab Muab Tshuab, Reflow Cub, Lub Tshuab Luam Ntawv, SMT Cov Kab Ntau Lawm thiab lwm yam khoom siv SMT.
Q5. Peb tuaj yeem ua dab tsi rau koj?
A: Tag nrho cov tshuab SMT thiab SMT kev daws teeb meem, kev txhawb nqa kev tshaj lij thiab kev pabcuam.
